| Стандарты |
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IPv6 |
| Категория |
AC1900 ultimate AC performance : 600+1300 Mbps |
| Wi-Fi Data Rate |
802.11a : 6,9,12,18,24,36,48,54 Mbps
802.11b : 1, 2, 5.5, 11 Mbps
802.11g : 6,9,12,18,24,36,48,54 Mbps
802.11n : up to 450 Mbps
802.11n TurboQAM : up to 600 Mbps
802.11ac : up to 1300 Mbps |
| xDSL Data Rate |
VDSL2/ADSL2+/ADSL2/ADSL multimode
Up to 100Mbps/100Mbps upstream/downstream
Support Annex A/B/I/J/L/M
Support all VDSL2 profiles -8a, 8b, 8c, 8d, 12a, 12b, 17a and 30a
VDSL2 interface compliance with ITU-T993.2
G.992.1 (G.dmt), Annex A, and B Compliant
G.992.2 (G.lite), Annex A, and B Compliant
ANSI T1.413 Compliant
G.992.3 (ADSL2) Compliant, Annex A, B, L, and M
G.992.5 (ADSL2+) Compliant, Supporting Annex A, B, and M
G.993.2 Compliant, Annex A, B, up to profile 30a with external AFE.
G.993.5 (Vectoring)
ATM and PTM (dual-priority) |
| Антенна |
External dBi antenna x 3 |
| Светодиодные индикаторы |
Power, Internet, LAN x 4, xDSL, 2.4 GHz Wi-Fi, 5 GHz Wi-Fi |
| Кнопки |
WPS Button, Reset Button, Power Button, Wireless on/off Button |
| Интерфейсы |
4 x RJ45 10/100/1000/Gigabits BaseT for LAN
1 x RJ11 for xDSL |
| Порты USB |
USB 3.0 x 1 |
| USB Applications |
Printer Server
FTP Server
Download Master
3G/4G sharing |
| Дополнительные функции |
3G/4G data sharing, AiCloud, Printer server, Download Master, AiDisK, Multiple SSIDs, Parental Control |
| Рабочая частота |
2.4GHz
5GHz |
| Каналы |
13 Europe (ETSI) |
| Память |
128MB Flash/256MB DDR3 RAM for WiFi/Router
8MB Flash/64MB DDR2 RAM for xDSL/Modem |
| Безопасность |
64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , Radius with 802.1x, WPS support |
| Управление |
Web-based GUI configuration
Firmware upgraded, configuration data uploaded and downloaded via Web-based GUI
UPnP IGD 1.0
Auto VPI/VCI detection
Configuration backup and restore
Diagnostics
Log & Trace function |
| Программы и утилиты |
Download master
- support BT, NZB, HTTP, ED2K
- support encryption, DHT, PEX and magnet link
- upload and download bandwidth control
- download scheduling
.Media server
.File server: Samba and FTP server with account management
.PPTP VPN server
.Network map
.Traffic monitor |
| Поддержка VPN |
IPSec Pass-Through
PPTP Pass-Through
L2TP Pass-Through
PPTP server
OpenVPN server
PPTP client
L2TP client
OpenVPN client |
| Блок питания |
AC Input : 100 ~240 V(50~60HZ)
DC Output : 19 V/1.75 A |
| Сертификаты |
CE |
| Размеры |
220 x 83.3 x 160 ~ mm (WxDxH) |
| Масса |
640 g (Device Only) |
| Совместимость с ОС |
Windows 7 32bit/64bit
Windows Vista 32bit/64bit
Windows® 8 32bit/64bit
Windows XP 32bit/64bit
Mac OS X
Linux |
| Комплект поставки |

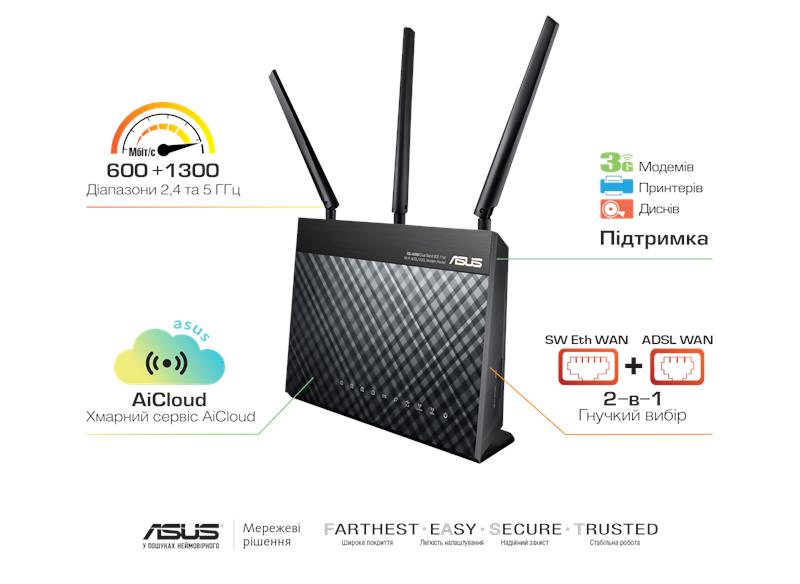

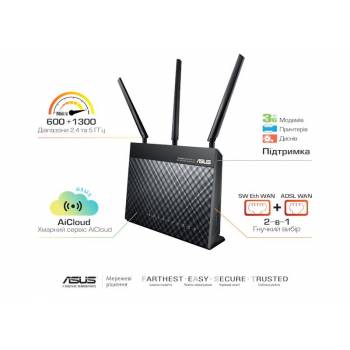

DSL-AC68U Dual-band Wireless-AC1900 VDSL/ADSL Modem Router
RJ-45 cable
RJ-11 cable
Support CD(User manual and utility)
Power adapter
Warranty card
Quick start guide
Splitter (varies with regions) |
